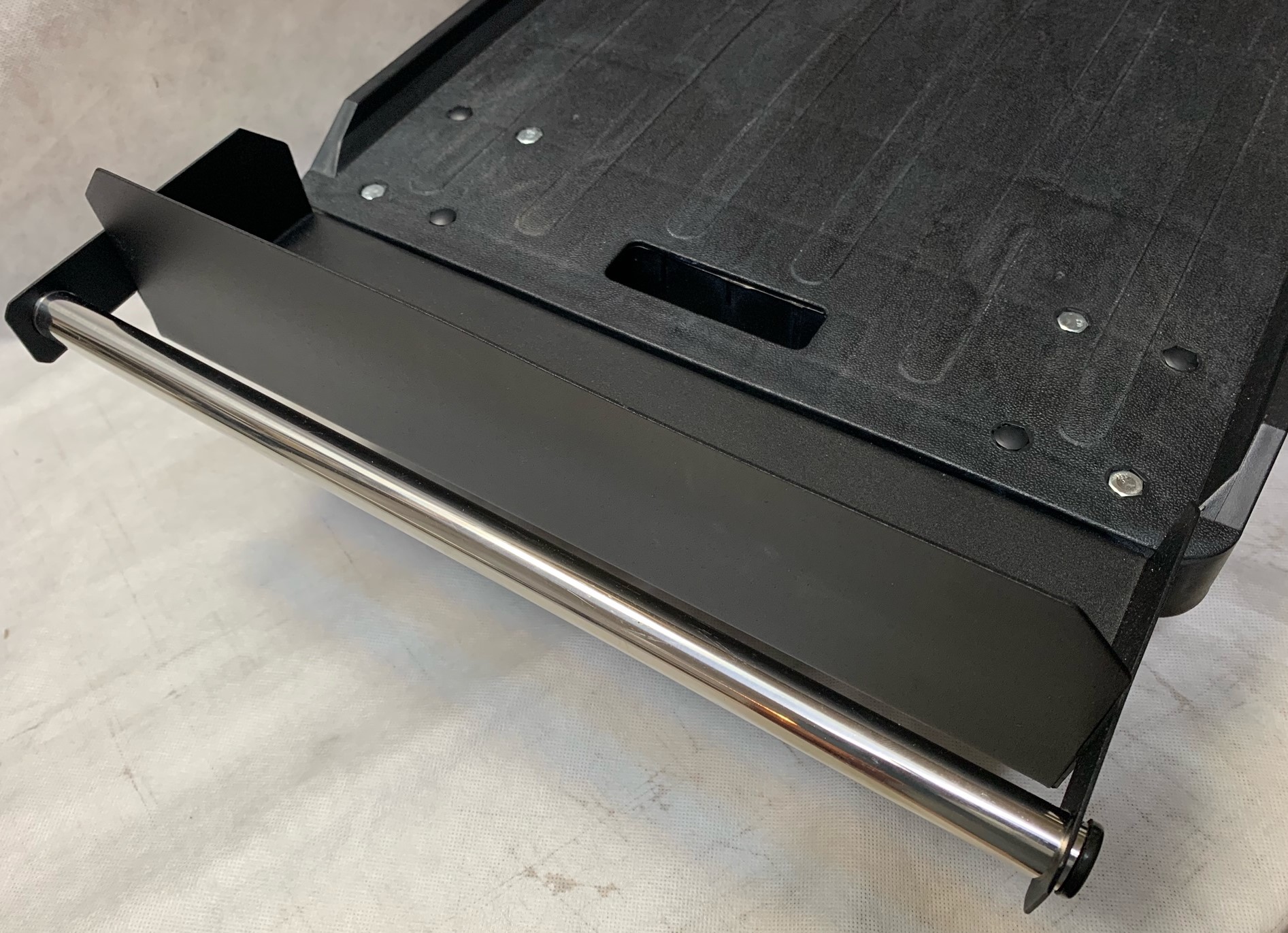

A-MobileATC - Mobile ESD Safe, Stair climbing transport cart

  • ESD safe stainless steel construction
  • Six ESD-safe wheels for easy stair climbing
  • Loading capacity of 150 Ibs

ESD Safe Climbing cart_ok.jpg

A-MobileATC_1 - okM.jpg

ESD Safe Transport Cart - ATC-1

  • Depth: 450 mm, width: 650 mm, height: 775 mm
  • Loading capacity of top shelf: 50 kg
  • Total loading capacity: 150 kg
  • All tires are made from ESD- thru conductive material
  • Wheel diameter: Ø 75 mm; two non-rotating and two rotating with brakes.

ATC-1 ESD Safe Cart random measurements on an empty cart without a load

QC-Data  A random check is conducted before shipping to Distributors:
ATC-1 Factory Measurements without a load (worst case)
Measured with ZeroCharge Surface resistivity Meter A-400 or Static Solutions RT-1000 Megohmmeter. (Both available from Bomir Inc. www.bomir.com)
Conditions: Humidity 60% Temp: 25.3 Deg. C.
  A-400 RT-1000
Surface Resistivity: 1.00 x 10e3 1.34 x10e
Top shelf to metal plate under the wheel:
Wheel 1  1.00 x 10e5 5.20 x 10e4
Wheel 2  1.00 x 10e5 6.70 x 10e4
Wheel 3  1.00 x 10e5 1.00 x 10e5
Wheel 4  1.00 x 10e5 7.70 x 10e4
Top shelf to metal plate under all four wheels:  1.00 x 10e4 2.30 x 10e4

The cart has a 10mm snap on the upper part of the right/front leg. This grounds the cart at the parking station.
A six foot grounding coil cord terminated with a banana plug and an alligator clip are included with the cart.

The measurements were done as per ESD guidelines.

The ATC-1 was not loaded. No load provides the worst case measurement, because the ESD rubber wheels make better contact with the floor when the cart is loaded.


ESD Safe Transport Cart - ATC-1S

  • Depth: 450 mm, width: 650 mm, height: 775 mm
  • Loading capacity of the top shelf: 50 kg, total loading capacity 150 kg
  • All platforms are made of conductive reinforced ABS material
  • All wheels are made of ESD-conductive material
  • All wheels, Ø 75 mm, with swivel. One wheel has a brake
  • On the upper part of the right/front leg, the cart has a 10mm snap for grounding the cart at the parking station. A six foot grounding coil cord terminating in a banana plug and an alligator clip are included with the cart

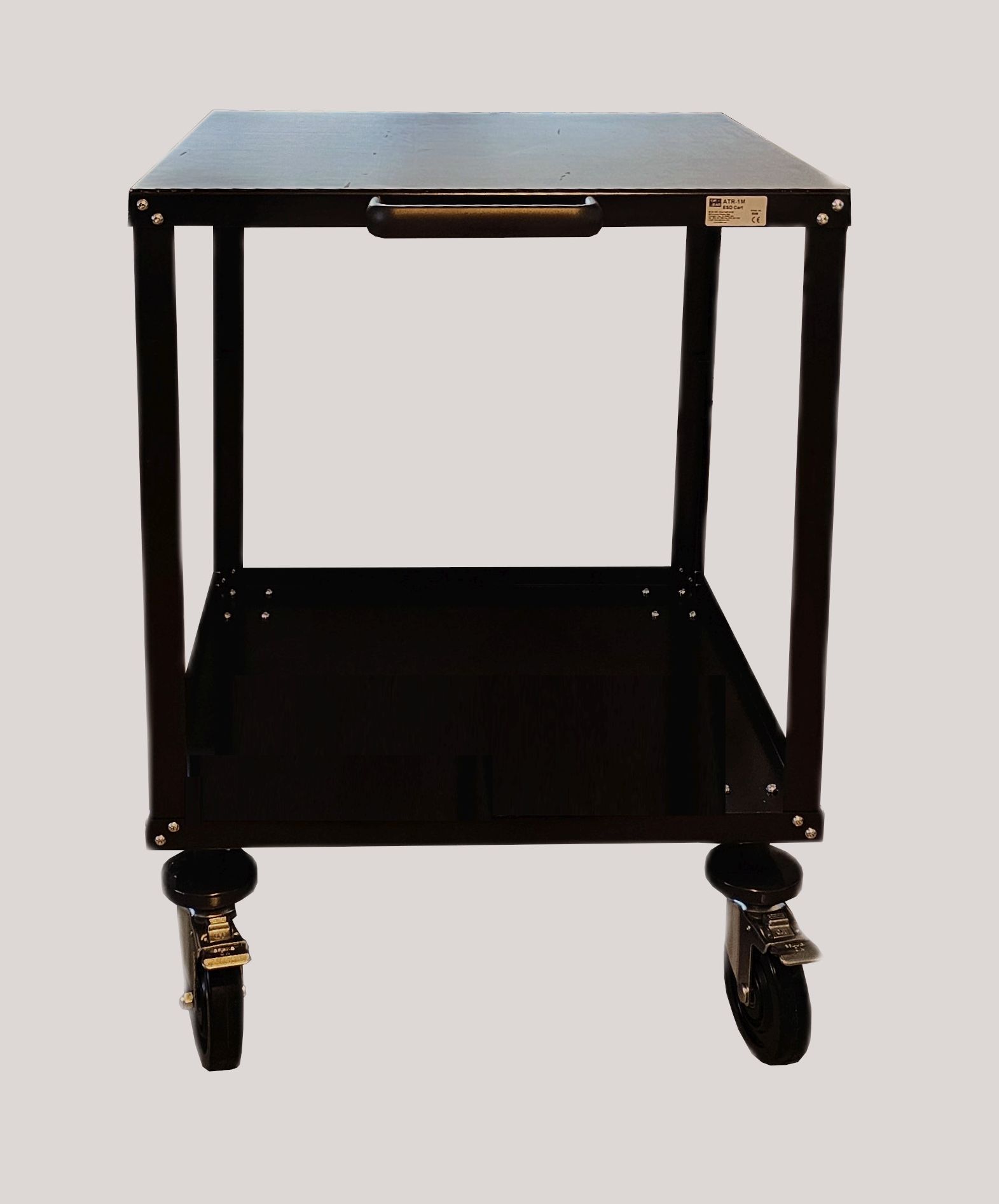

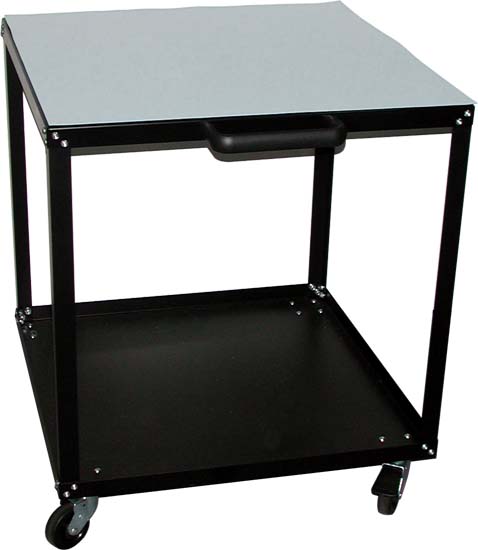

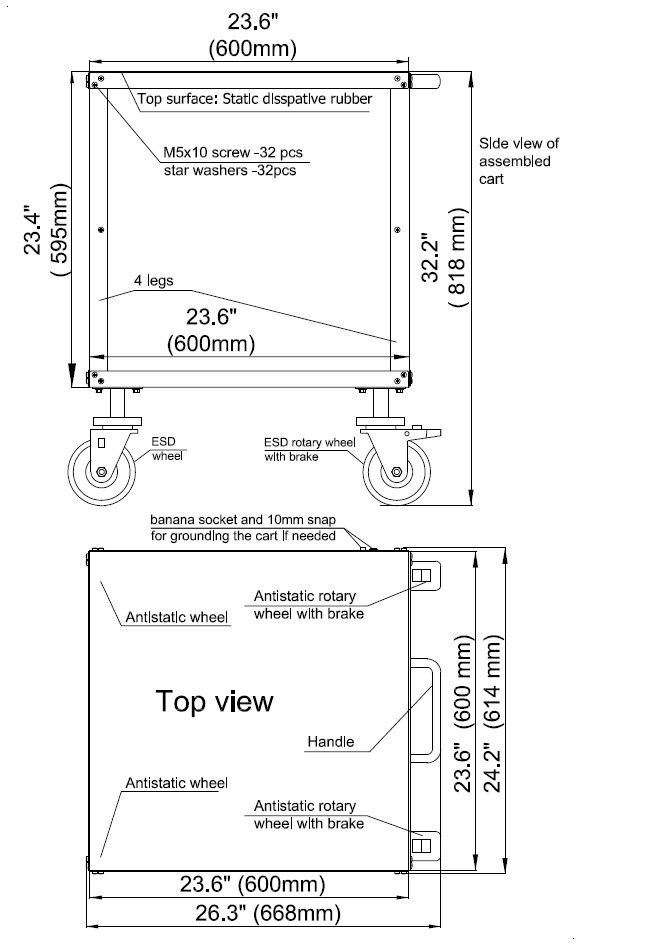

ESD Safe Utility Cart - ATR-1

All-metal cart with ESD wheels and ESD Rubber mat on the top shelf. This Utility Cart is designed to prepare and transport equipment, parts, etc. to the assembly area. It also makes a convenient mobile work surface for sorting parts, quick product repair, packing, etc.

A soft, no-burn rubber mat top makes it suitable for transporting delicate parts. It is also easy to clean and handy. When not in use, it can be used as an extra shelf or table.

Features:

  • Quality ESD casters
  • Convenient handle to pull or push
  • ESD non-burn rubber mat surface on the top shelf
  • Extra Middle shelf P/N: ATR-MS

Contruction:

  • Epoxy powder coated steel
  • ESD Safe
  • Top covered with ESD, two layer rubber mat
  • Two shelves
  • Convenient handle for pushing or pulling.

The cart has a 10mm snap for grounding the cart at the parking station on the upper part of the right/front leg. A six foot grounding coil cord terminating in a banana plug and an alligator clip are included with the cart.

Technical specifications:

Dimensions 24.4" L x 24.4" W x 27.6" H
(620 L x 620 W x 700 H mm)
Load capacity 400 lb.
(250 Kg)

Optional middle shelf

P/N ATR-MS must be ordered separately


ESD Safe Cart ATR-1M

ESD Utility Cart. Conductive, no marking wheels. Top shelf finish: ESD, two layer non burn rubber mat.
Model ATR-1M has an extra middle shelf.
Otherwise, same performance as ATR-1.


ESD Safe Cart ATR-1R

This cart was designed to prepare and transport equipment, parts, etc. to the assembly area. It makes a convenient mobile work surface for folding, sorting, or repairs.

It is also intended for carrying laboratory equipment which needs to be mobile.

Features:

  • Large, non-marking ESD safe casters
  • Convenient handle to pull or push
  • Static-safe, non-burn rubber mat surface
  • 10mm grounding snap on the right side of the top shelf and a grounding coil cord to safely ground the cart at a parking station when used on floors that are not ESD safe

Contruction:

  • Epoxy powder coated steel
  • Static-safe
  • Top covered with antistatic, two layer rubber mat
  • Two levels for model ATR-1R
  • Two rotary wheels. One on the front with a brake
  • Convenient handle for pushing or pulling.

Technical specifications:

Dimensions 33.5" L x 23.6" W x 27.6" H
(850 L x 600 W x 700 H mm)
Load capacity 400 lb.
(250 Kg)

More Info


ESD Safe Cart ATR-1/306

The cart was designed specifically for X-Reflow306 Series Batch Ovens.

All metal cart with ESD wheels and ESD rubber mat on the top shelf. It is extended to match the X-Reflow306 oven's length. The middle shelf is spaced to allow sufficient height to place a X306 Fume Extract system on the cart.

The cart can also be used to prepare and transport other equipment, parts, etc. to the assembly area. It makes a convenient mobile work surface for sorting parts, quick product repair, packing, etc.

Features:

  • Strong ESD casters
  • Convenient handle to pull or push
  • ESD non-burn rubber mat surface on the top shelf
  • A middle shelf to store extra accessories and equipment needed when using the reflow oven (e.g. data logger, thermocouples. etc.)

Construction:

  • Epoxy powder coated steel
  • ESD Safe
  • Top covered with an ESD, two layer rubber mat
  • Three shelves
  • Convenient handle for pushing or pulling

The cart has a 10mm snap on the upper part of the right/front leg for grounding the cart at a parking station. A six foot grounding coil cord terminating in a banana plug and an alligator clip are included with the cart.

Technical specifications:

Dimensions 24.4" L x 31.1" W x 27.6" H
(620 L x 790 W x 700 H mm)
Load capacity 400 lb.
(250 Kg)

LOW-COST, HEAVY DUTY SERIES of ESD SAFE CARTS

ATC-2

These metal ESD Carts were designed to minimize cost. They are all made of chromium-plated steel rods. The shelves connect to the four posts via metal, slightly conical split inserts to guarantee a good path to the ground via the wheels. Conducting wheels on ESD rubber tires guarantee that the current will pass to the ESD safe floor. For transport of small parts, the optional ATC-L ESD rubber mat, pre-cut shelf liners are offered to form a solid, flat surface on the desired shelf.

ATC-2L= Set of liners for ATC-2 cart (Consists of 3 liners, size 24”x30”)
ATC-2SL= Set of liners for ATC-2 cart (Consists of 2 liners, size 24”x30”)
ATC-3L= Set of liners for ATC-2 cart (Consists of 3 liners, size 18”x36”)
ATC-3SL= Set of liners for ATC-2 cart (Consists of 2 liners, size 18”x36”)

The ATC-2 cart Consists of:

  • 3 pcs of 24"x30" Chrome-Plated Shelf
  • 4 pcs of 34" Chrome-Plated Post
  • 4 pcs of ESD Swivel PU Casters (2 pcs with a brake)
  • 1 pc of Handle, Chrome-Plated
  • 14 sets of metal sleeves (12 for shelves and 2 for the handle)
  • ESD Shelf Liner Set ATC-2L(Green mats) is Optional

ATC-2S Two Level, Wide ESD safe Cart

Designed to minimize cost. They are made of chromium-plated steel rods. The shelves connect to the four posts via slightly conical split inserts made of metal to guarantee a good path to the wheels. Conducting wheels on ESD rubber tires guarantee the current will pass to the ESD safe floor. For transport of small parts, the optional ATC2-L ESD rubber mat, pre-cut shelf liners are offered to form a solid, flat surface on the desired shelf.

The ATC-2 cart Consists of:

  • 2 pcs of 24"x30" Chrome-Plated Shelf
  • 4 pcs of 34" Chrome-Plated Post
  • 4 pcs of ESD Swivel PU Casters (2 pcs with a brake)
  • 1 pc of Handle, Chrome-Plated
  • 14 sets of metal sleeves (12 for shelves and 2 for the handle)
  • ESD Shelve Liner Set ATC-2SL(Green mats) is Optional

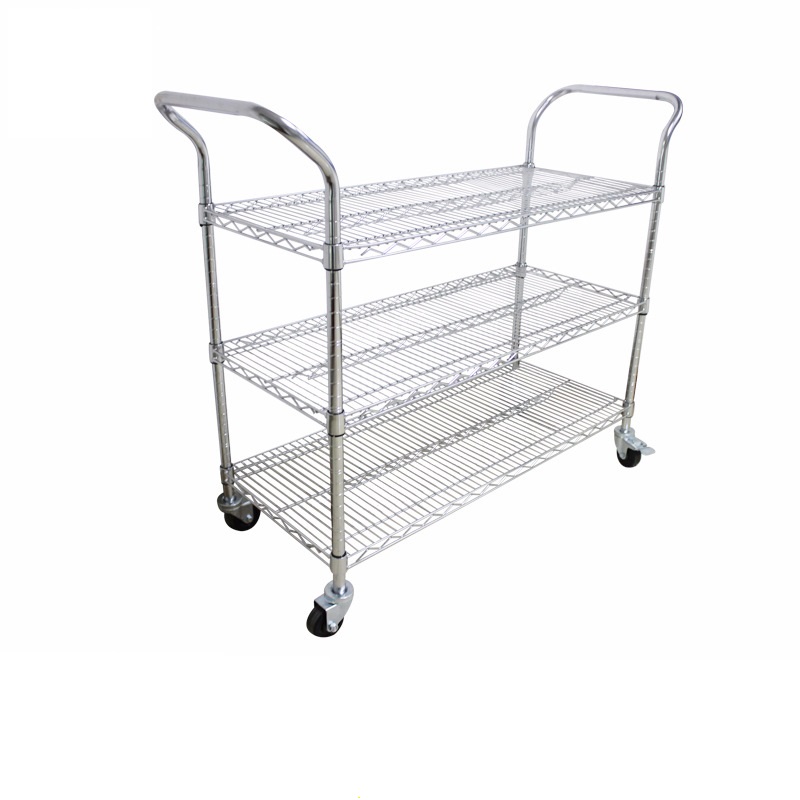

ATC-3 Three Level, Narrow Cart

The ATC-3 cart is similar to ATC-2 cart.
It is 6 inches longer and 6 inches narrower (18’ instead 24”)
to facilitate movement in narrow passages.
It also has 2 handles, one on each side of the cart.

ATC-3 Consists of:

  • 3 pcs of 18"x36" Chrome-Plated Shelf
  • 2 pcs of 40" Chrome-Plated U Post/Handle unit
  • 4 pcs of ESD Swivel PU Casters (2 pcs with brakes)
  • 12 sets of metal sleeves to hold the shelves
  • ESD Shelf Liner Set ATC-3L (Green mats) is Optional

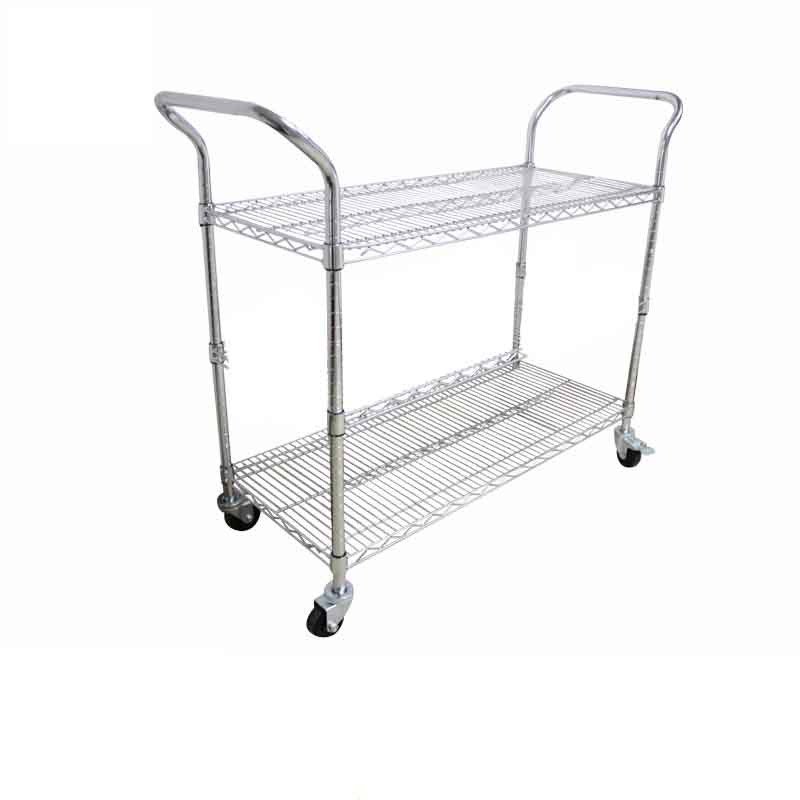

ATC-3S Two Level, Narrow Cart

The ATC-3S cart is similar to ATC-2S cart.
It is 6 inches longer and 6 inches narrower (18’ instead 24”)
to facilitate movement in narrow passages.
It also has 2 handles, one on each side of the cart.

ATC-3S Consists of:

  • 2 pcs of 18"x36" Chrome-Plated Shelf
  • 2 pcs of 40" Chrome-Plated U Post/Handle unit
  • 4 pcs of ESD Swivel PU Casters (2 pcs with brakes)
  • 8 sets of metal sleeves to hold the shelves
  • ESD Shelf Liner Set ATC-2L (Green mats) is Optional
ACT 3s.jpg

ATC-F4 Set of four feet (Optional)

ATC-F4 Set of four feet can be used with the ATC2 and ATC3 Series of carts


ESD Safe Container Dolly - ADL-1

The ADL-1 Container Dolly is made of strong, conductive, and wear-resistant high impact material. It is used to transport containers with PCB's (PCB Racks, parts, etc.) in ESD safe production environments. It is essential in every ESD controlled assembly area.

The trolley address limited space in factories.

Containers can be simply stacked and stored on top of the trolley. The maximum number of containers stacked on top of each other should not exceed 10 pcs. Each trolley has one puller and four true ESD Casters. Two of the casters can rotate.

Technical specifications:

Outside Dimensions 25.8" L x 17.9" W x 1.4" H
(655 L x 455 W x 155 H mm)
Platform Dimensions 24.8" L x 16.5" W
(630 L x 420 W mm)
Load capacity 220 lb.
(100 Kg)

ESD Carts Accesories:



Rubber Renue 408B-25 - ESD rubber wheel cleaning and restoration liquid

  • Rejuvenates and conditions rubber
  • Rubs off film of oxidation
  • Can be applied with a cloth, brush or swab
  • Excellent for use on ESD cart wheels, belts, platens, rollers, or other rubber parts
  • Bottle size:  225ml/7.6oz

This product is recommended for maintenance of ESD safe rubber wheels from all ESD Safe Carts.

The floors in many workplaces are not ideal and will have dust on them.

The rubber wheels (especially under load) will collect this dust on the rolling surface of the wheels.

Periodic cleaning and wiping this surface with Rubber Renue will maintain the wheels' static dissipative properties

and ensure the static electricity discharges to the ESD safe floor.

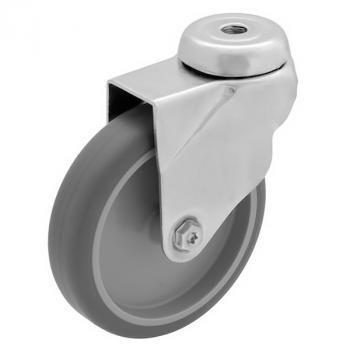

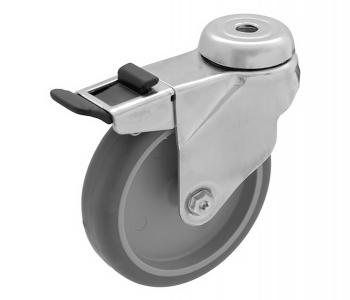

AW75 and AW75/BK ESD Wheels

More Info

Note: This product is not designed for use with our current carts.


A-MobileATC_1 - okM.jpg
